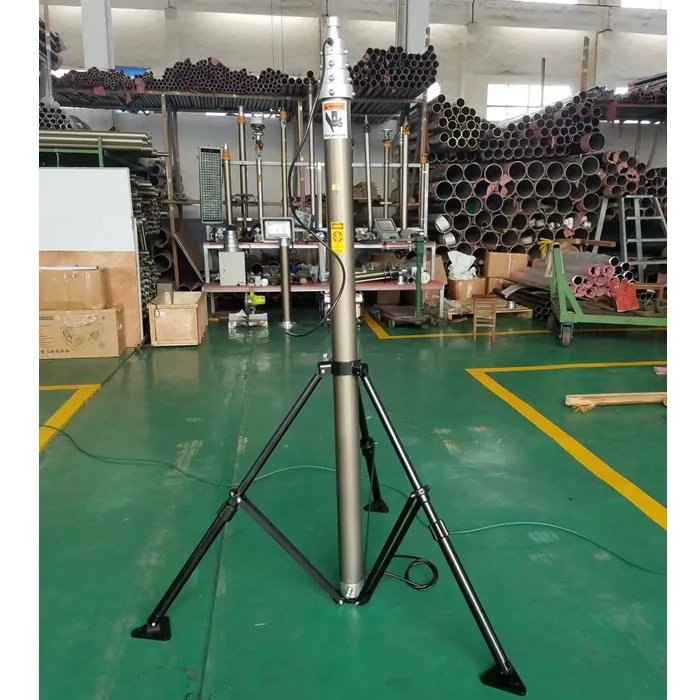

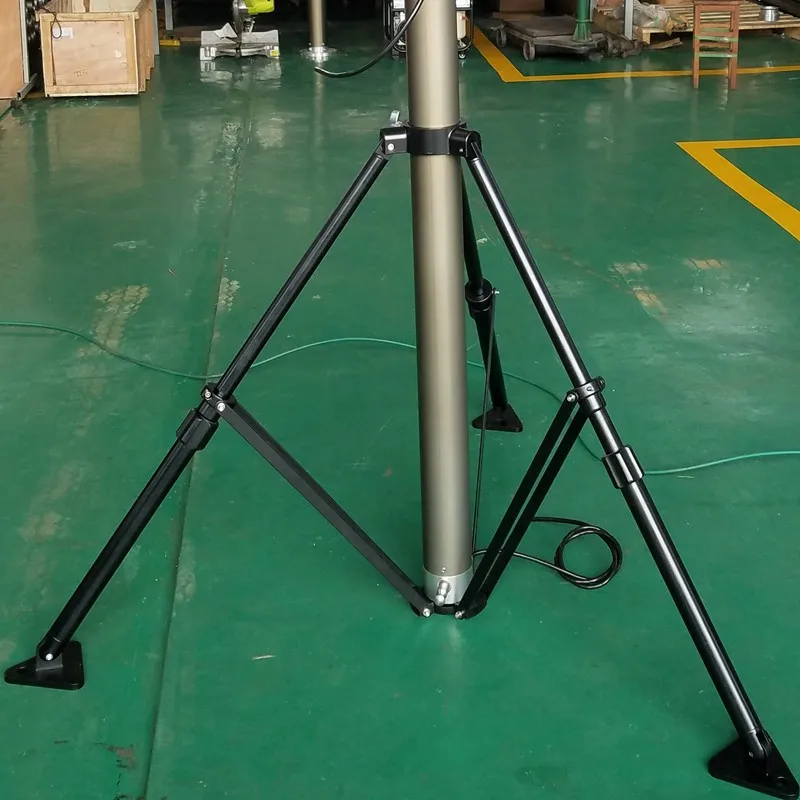

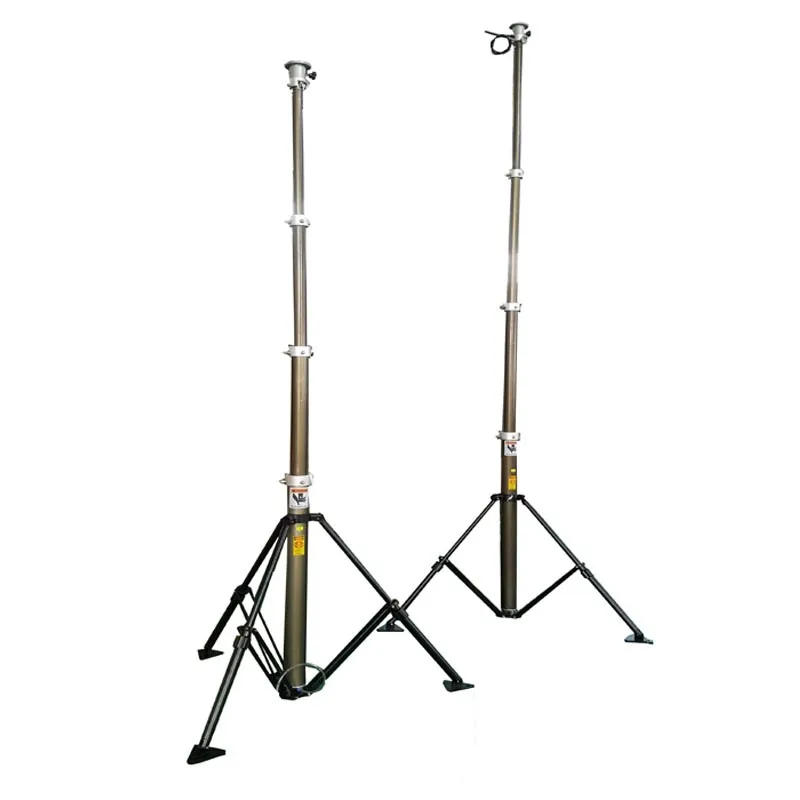

5m Tripod pneumatic telescopic mast

FOB Reference Price:Get Latest Price
  • 5 - 9 Units
    US $757.80
  • 10 - 19 Units
    US $717.30
  • 20 - 29 Units
    US $695.20
  • >=30 Units
    US $675.12
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
Talents, 6m Tripod pneumatic telescopic mast
Model Number:
TAL-P5-1.75-35-AT8
Name:
5m Tripod pneumatic telescopic mast
Material:
aluminum alloy
Color:
Bronze
Extended height:
5m
Retracted height:
1.75m
Large tube OD:
98mm
Maximum head loads:
35kg
Collar style:
normal non-lock
Lifting speed:
2.0m per minute
Max Working pressure:
0.20MPA
Supply Ability
Supply Ability:
300 Unit/Units per Month 5m Tripod pneumatic telescopic mast
Packaging & Delivery
Packaging Details
One unit of Mobile 5m pneumatic antenna lifter to be wrapped with Poly tapes and then put into carton
Port
Xingang,China
Lead Time :
10 days after your payment
Product Description

5m Tripod pneumatic telescopic mast

Overview

              It can help lamplight, camera, Antenna, mobile and other equipment rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field.Our product has the advantages of large play load, low noise, fast lifting, strong buffering & stable performance and the like. With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. It can be installed on the ground or on the vehicle to ensure the application effect.

Application:
Microwave Antenna Masts Tower, Radio Communication Towers, Surveillance Camera Elevation, Sensor Elevation, Data Gathering, Atmosperic Measurement, Airfield Weather Stations, Oil Field Exploration, Border Security Application......


Specifications of 5m Tripod pneumatic telescopic mast

1> Extended height: 5.0m
2>Retracted height: 1.75m
3>Diameter range: 40--90mm
4>Loading: 35kg
5>Collar style: non-locking collar
6>Number of sections: 4 sections
7>Max Working pressure:0.20MPA
8>Working temparature:-15--+50C
9>Lifting speed:2.0m per minute

Installation Instructions:

1)The Mobile 5m pneumatic antenna lifter can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The Mobile 5m pneumatic antenna lifter needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

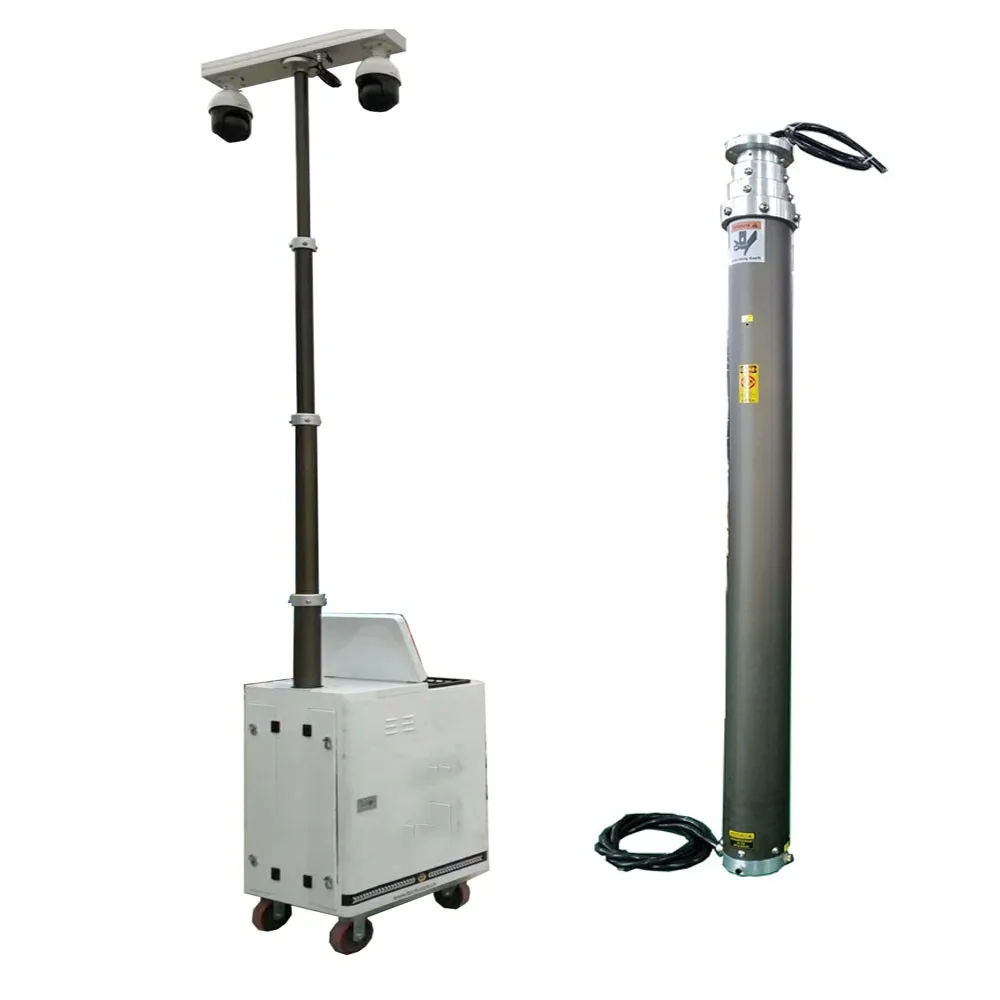

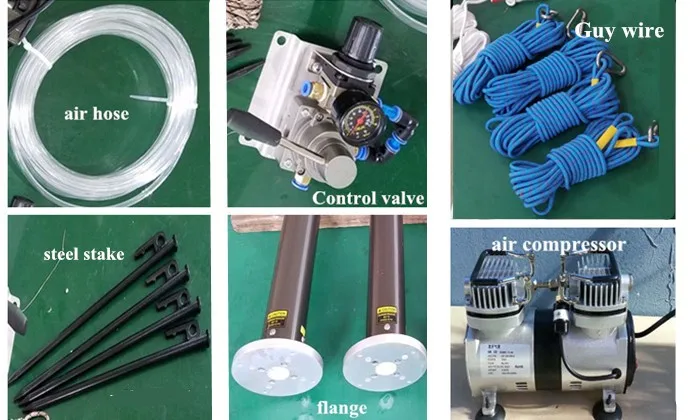

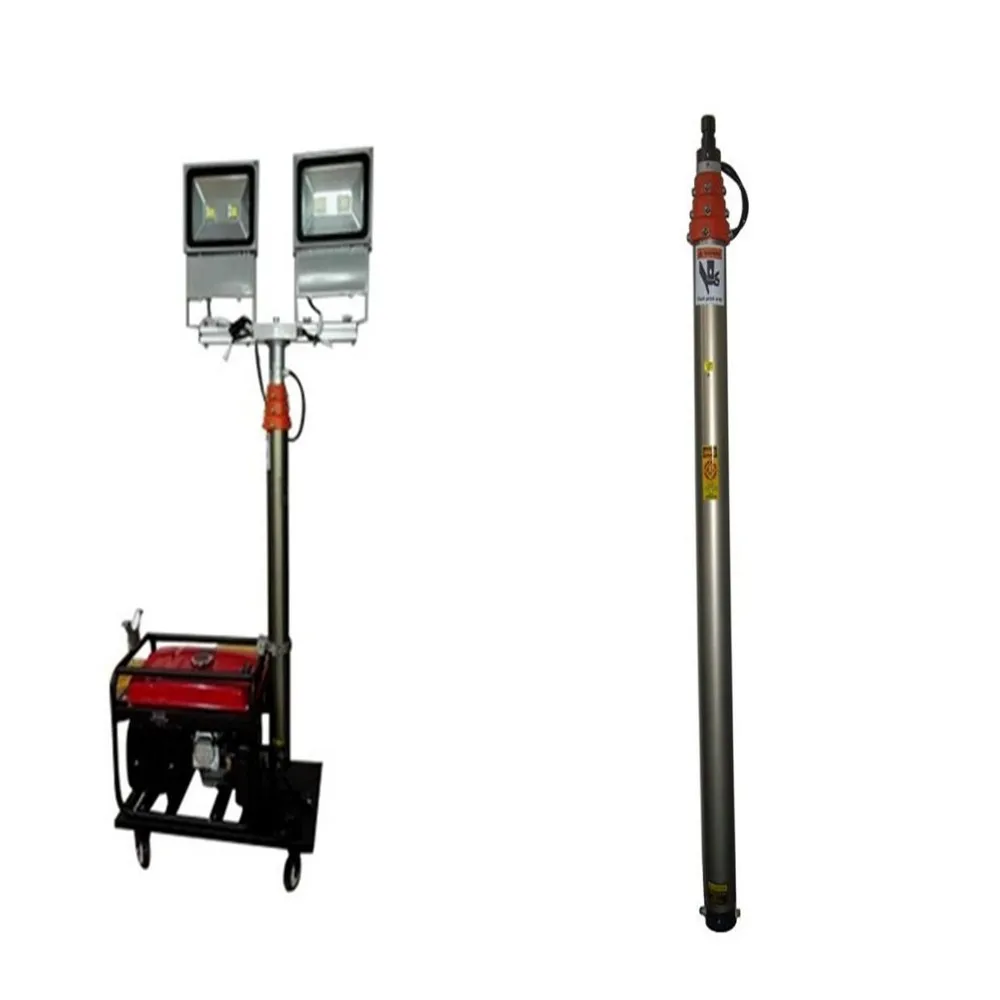

Detailed Images

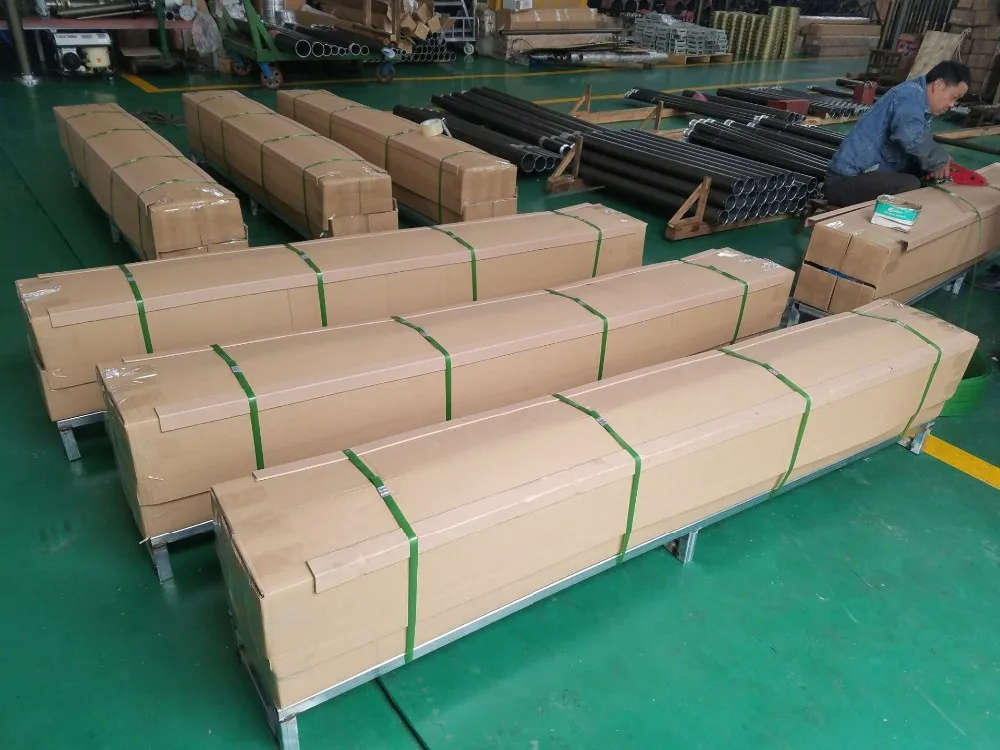

Packing & Delivery
Our Service

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year’s time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

Other Specification
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.85-250-AT8
4
1.85
180
140
3
250
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.2-30-AT7
4.5
1.2
140
51
6
30
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-110-AT8
5
1.75
140
82
4
110
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.5-250-AT8
8
2.5
229
118
5
250
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-8.0-2.0-25-AT9
8
2
118
36
6
25
TAL-8.4-2.3-30-AT8
8.4
2.3
118
51
5
30
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-10.0-2.4-15-AT8
10
2.4
118
36
6
15
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-12.0-2.6-15-AT9
12
2.6
140
36
7
15
TAL-15.0-3.2-30-AT9
15
3.2
160
51
7
30
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

For the model NO.: AT7 for the mast with cable design we have done for our clients, if you need cable, cable size need customers provide.

                                  AT8 for the mast without the cable and the lock

                                  AT9 for the mast with the lock
