15m heavy duty Telecom pneumatic tower mast

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US $2591.08
  • 5 - 9 Sets
    US $2386.51
  • 10 - 19 Sets
    US $2326.86
  • >=20 Sets
    US $2240.55
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
Talents,Telecom pneumatic tower mast
Model Number:
TAL-P15-3.2-30-AT8
Product name:
15m heavy duty Telecom pneumatic tower mast
Material:
Aluminium Alloy6063B
Surface treatment:
Anodic oxidation
Color:
Bronze
Extened Height:
15m( 50ft)
Retracted height:
3.2m(10.5ft)
Max Head-load:
30kg
Lift Type:
pneumatic lift model
Fixed type:
vehicle mouted( no tripod)
ODM/OEM:
Acceptable
Supply Ability
Supply Ability:
2000 Set/Sets per Month 15m heavy duty Telecom pneumatic tower mast
Packaging & Delivery
Packaging Details
Plywood case, inner mainting part filled with foam.
Port
Shanghai port,China
Lead Time :
Around 12-25 days after receiving prepayment
Product Description
 Pneumatic telescopic mast

*  Air compressor/foot punp/hand pump for lifting control.

*  Provide convenient installation and use for communications, security, lighting...
*  Portable, retractable, widely application

*  Accept customerized request

*  Specification range: extended height from 1m to 35m.  max head-load from 5kg to 300kg...

*  Based on different mount place, different accessories will be provided.

Specification
Specification
15m heavy duty Telecom pneumatic tower mast
Model No.
TAL-P15-3.2-30-AT8
Extended height
15m
Retracted height
3.2m
Max head-load
30kg
Mast self weight( without tripod)
around 150kg
Mast sections No.
7 sections
Section No.& tube OD*Wall thickness
1#160/5.0mm    2# 140/5.0mm      3# 118/4.0mm     4# 98/4.0mm      5# 82/3.5mm         6# 66/3.0mm       7 # 51/3.0mm
Acessories
Mount model
vehicle mounted
Accessories
Air compressor------------------------------------------1pc
     110V~220V for choose
      working pressure:0.2MPa
Air hose-----------------------------------------------------1pc
Control invalve-------------------------------------------1pc
Top flange--------------------------------------------------1pc

Detailed Images

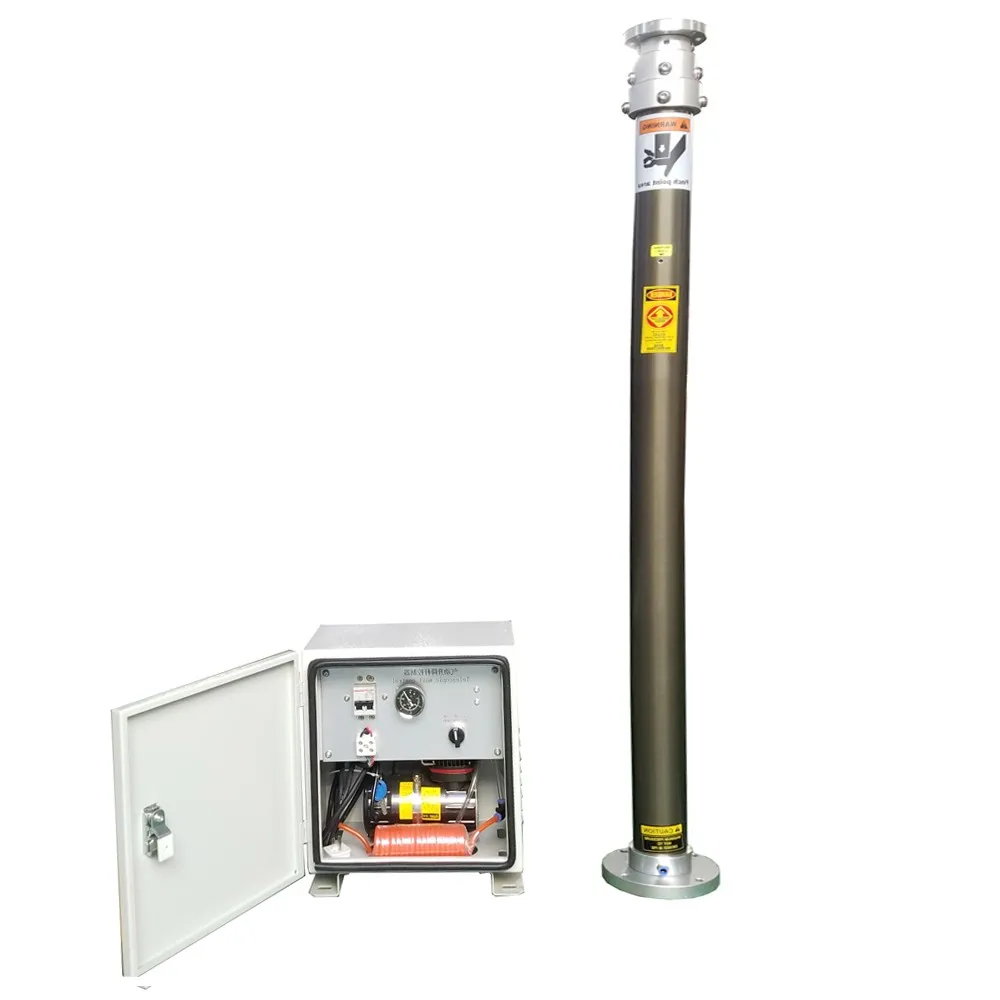

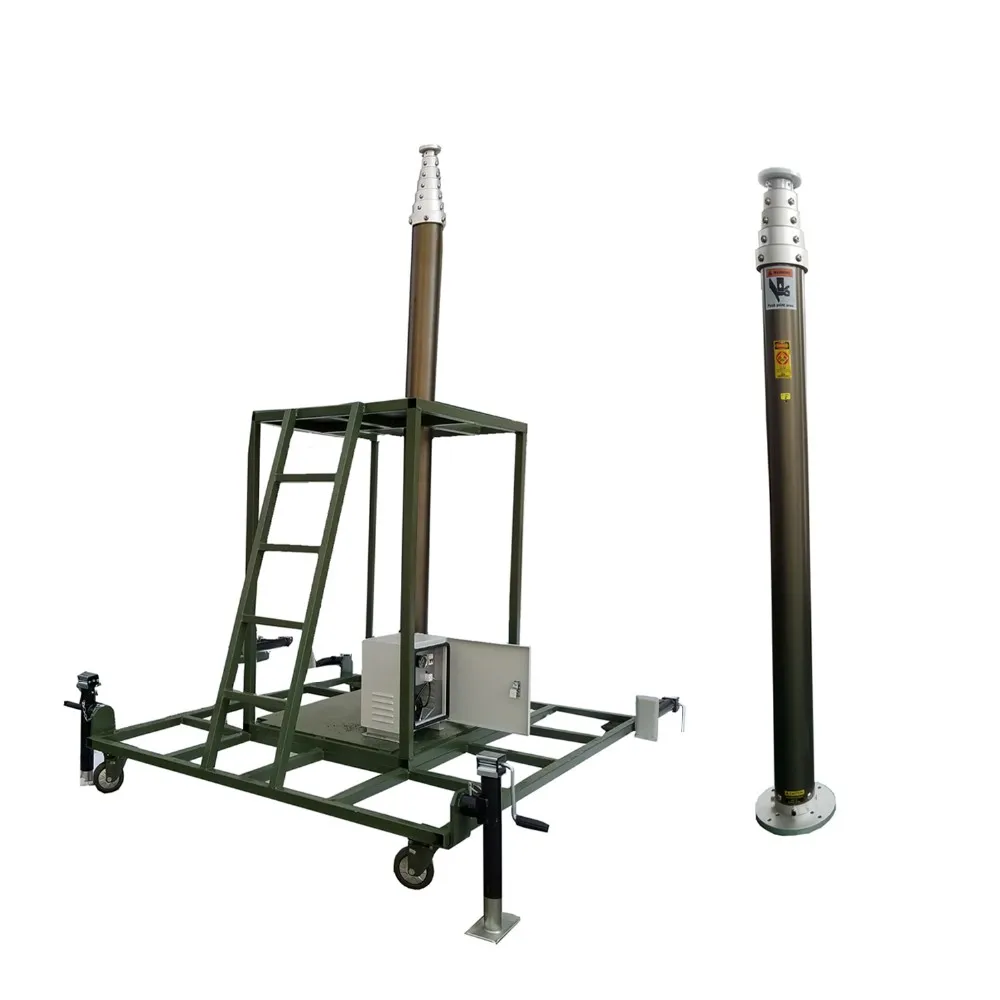

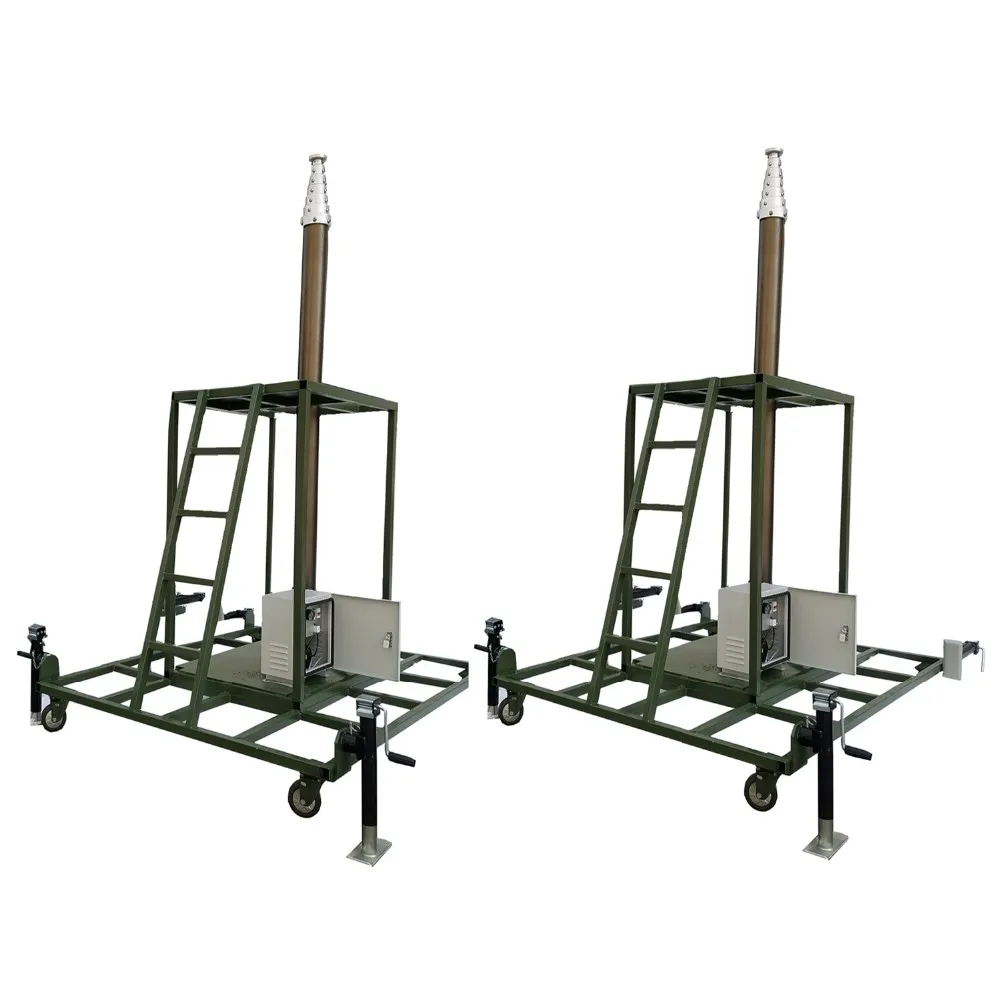

15m heavy duty Telecom pneumatic tower mast

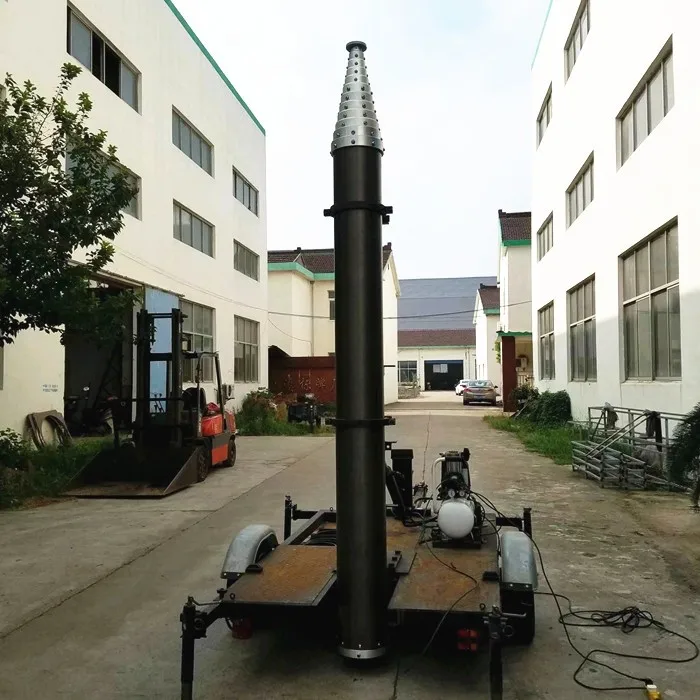

Application pictures

         lighting mast

         camera tripod

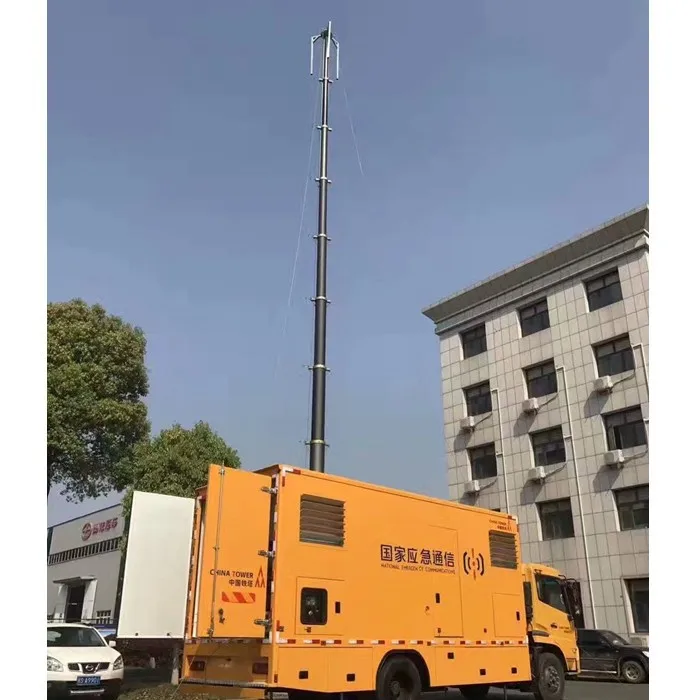

            Vehicle mounted

               camera mast

Packing & Delivery


15m heavy duty Telecom pneumatic tower mast

Packed into a Plywood case.

Mast and accessories will be packed into a plywood case.

inner matainnig parts will be filled with foam.

Gross weight is around 220kg

Measurement:340*45*50cm

if special request on the packge, we can do it for you.


Our Service

Pre-sale

Reply within 24 hours by e-mail/whatsapp/Wechat/Skype.

Profession advice and design based on customers request.

After-sales

One year warranty for the conditions except the damage caused by Artificial operation, extreme weather conditions.

Our Company

TJTALENTS ENTERPRISE CO.,LTD

* Professional design and supplier for the telescopic mast since 1995---manaul/motorized/pneumatic model.

* Have own technician team for providing proffestional ODM help.
* Golden supplier since 2007 on Alibaba, provide professional export help.

* Our products are widely used all over the world, in places such as Australia, Singapore, Brazil, Chile, UK, Germany, Netherlands, Spain,USA, India,    Malaysia and more.

* Our mast are widely used in Military, Emergency, Illumination, Photography,Meteorologic Measurement, etc.

* We just do the good quality mast in long service time.

Other Specification
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.85-250-AT8
4
1.85
180
140
3
250
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.2-30-AT7
4.5
1.2
140
51
6
30
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-110-AT8
5
1.75
140
82
4
110
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.5-250-AT8
8
2.5
229
118
5
250
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-8.0-2.0-25-AT9
8
2
118
36
6
25
TAL-8.4-2.3-30-AT8
8.4
2.3
118
51
5
30
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-10.0-2.4-15-AT8
10
2.4
118
36
6
15
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-12.0-2.6-15-AT9
12
2.6
140
36
7
15
TAL-15.0-3.2-30-AT9
15
3.2
160
51
7
30
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

For the model NO.: AT7 for the mast with cable design we have done for our clients, if you need cable, cable size need customers provide.

                                  AT8 for the mast without the cable and the lock

                                  AT9 for the mast with the lock
