10m mobile communication aluminum telescopic antenna cctv camera mast pole

FOB Reference Price:Get Latest Price
US $1,000-2,200 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
talents
Model Number:
TAL-P10-2.4-30
Top payload:
20kg
Length:
10m
Material:
aluminium alloy
Surface:
hard anodized treatment
color:
light brown or white
application:
Emergency Lighting, Military, Antenna, Mobile Communication Tower.
outer tube dia:
140mm
material:
aluminum alloy
working temp.:
0.20Mpa
No. of section:
6
Supply Ability
Supply Ability:
200 Unit/Units per Month telescopic cctv camera mast pole
Packaging & Delivery
Packaging Details
packing of telescopic cctv camera mast pole: one set put into a plywood case
Port
China main port
Lead Time :
Quantity(Units) 1 - 1 2 - 10 11 - 30 >30
Est. Time(day) 12 18 35 To be negotiated
Video Description
Product Description

What is a Pneumatic Mast?

           Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Classification of masts

Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 300kg.


Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Specification
10m aluminum telescopic antenna mast , telescopic cctv camera mast pole
Model No.
TAL-P10-2.4-30
Extended height
12.0m
Retracted height
2.6m
Max head load
20kg
Sections Numbers
6 sections
each section tube OD& thickness
1# 140/5.0mm      2# 118/4.0mm
3#   98/4.0mm      4#    82/3.5mm
5#   66/3.0mm      6#    51/3.0mm
Mast net weight

70kg( without  accessories)
Max wind load

100km/h ( with guy wire fixed)
Detail

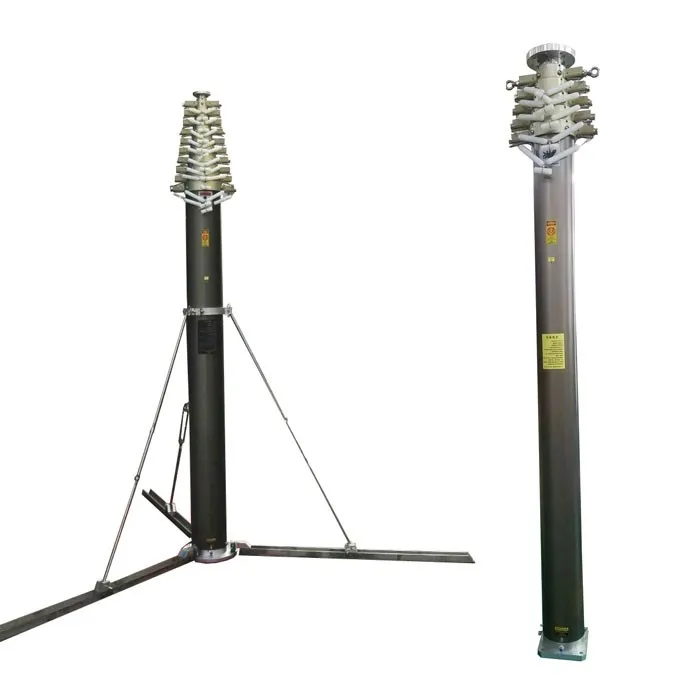

10m mobile communication aluminum telescopic antenna cctv camera mast pole

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze and origin silver color for choose.

Acessories

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Packing & Delivery



12m portable locking telescopic pneumatic mast

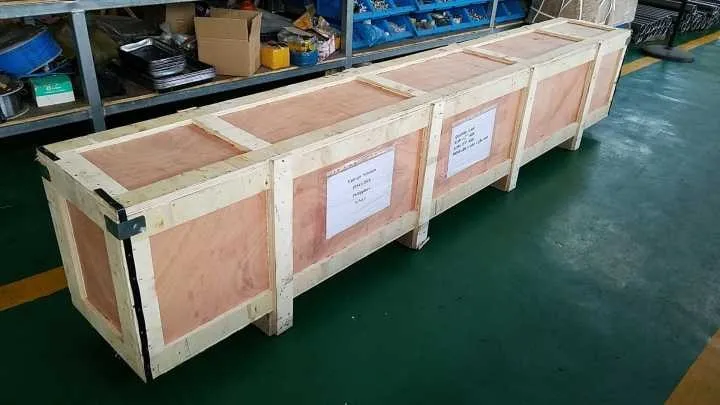

*one set mast with aceessories will be packed into a

  plywood case, inner space of case filled with the foam to

  protect the mast.
*Gross weight: around 160kg
*Package Meas: 280*50*60cm

Other Specification
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

above specification does not include all we can do.

Certifications
Our Service

1.Reply inquiry within 24 hours by Alibaba, e-mail, whatsapp, wechat or Skype.
2.Based on clients' request, provide fittable design drawing and data sheet.
3.One year warranty after sale.
4.We have technicians to give use suggestions and solutions to problems in use.
