4m to 2.5m hydraulic telescopic mast for 400kg led screen on trailer

FOB Reference Price:Get Latest Price
US $800-1,000 / Sets | 1 Set/Sets telescopic mast for led screen (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
TALENTS
Model Number:
TAL-P2.5-1.5-400
Material:
aluminium alloy
Length:
2.5m
Top payload:
400kg
retracted:
1.5m
color:
light brown
application:
for led screen supporting
out tube dia.:
229mm
No. of section:
3
type:
pneumatic mast
accessories:
air compressor,guy wire and ground anchor
Supply Ability
Supply Ability:
200 Unit/Units per Month telescopic mast for led screen
Packaging & Delivery
Packaging Details
packing of telescopic mast for led screen : one set put into a plywood case
Port
China main port
Product Description
4m to 2.5m hydraulic telescopic mast for 400kg led screen on trailer
technical data
main spec.
1)Extended height: 2.5m
2)Retracted height: 1.5m
3)Outer diameter range:180--202-229mm
4)Thickness: 5-6-6mm
5)Maximum head loads: 400kgs
 6)Number of sections: 3 sections
7)Wind load :100 km/h
8)Max Working pressure of air compressor:0.25MPA
9)Working temperature :-15--+60℃
Accessories
Car clamp--------------------------------------------------1 unit
Air pump---------------------------------------------------1 piece
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece
Material
Al-Mg alloy 6063
Color
light brown
accessories
model
unit
guy wire
1 set
ground anchor
1 set
air compressor or manual pump
1 unit
tripod or car clamp
1 unit
top plate
1 unit
bottom base
1 unit

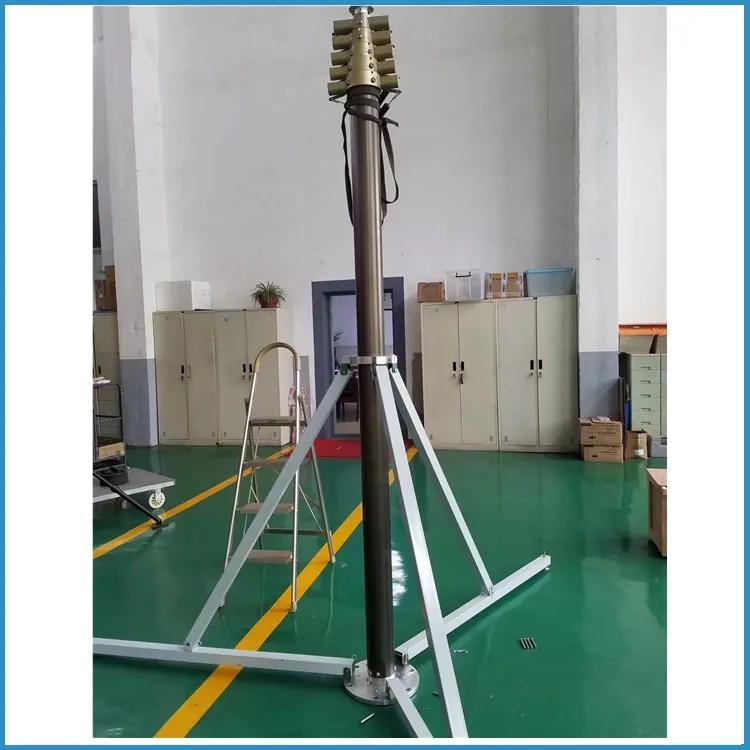

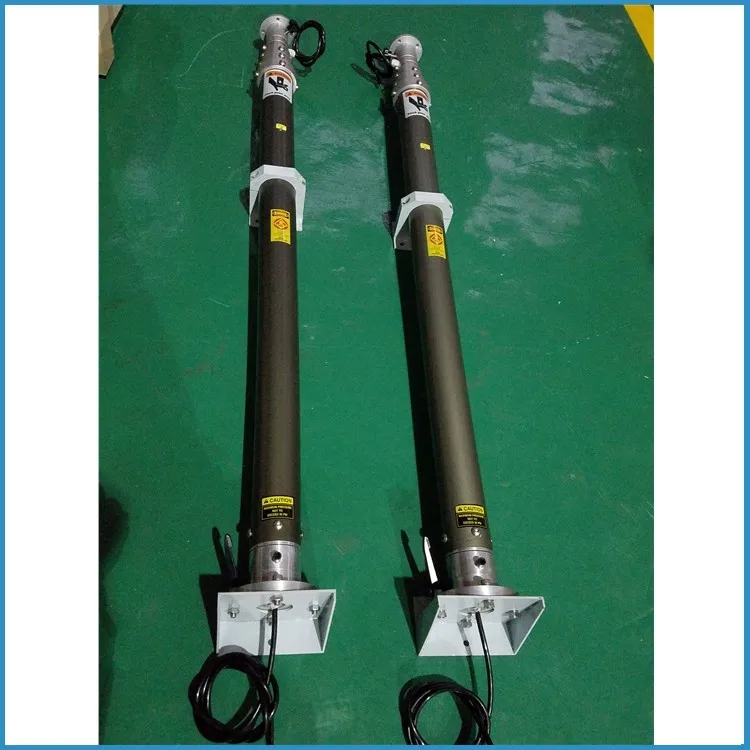

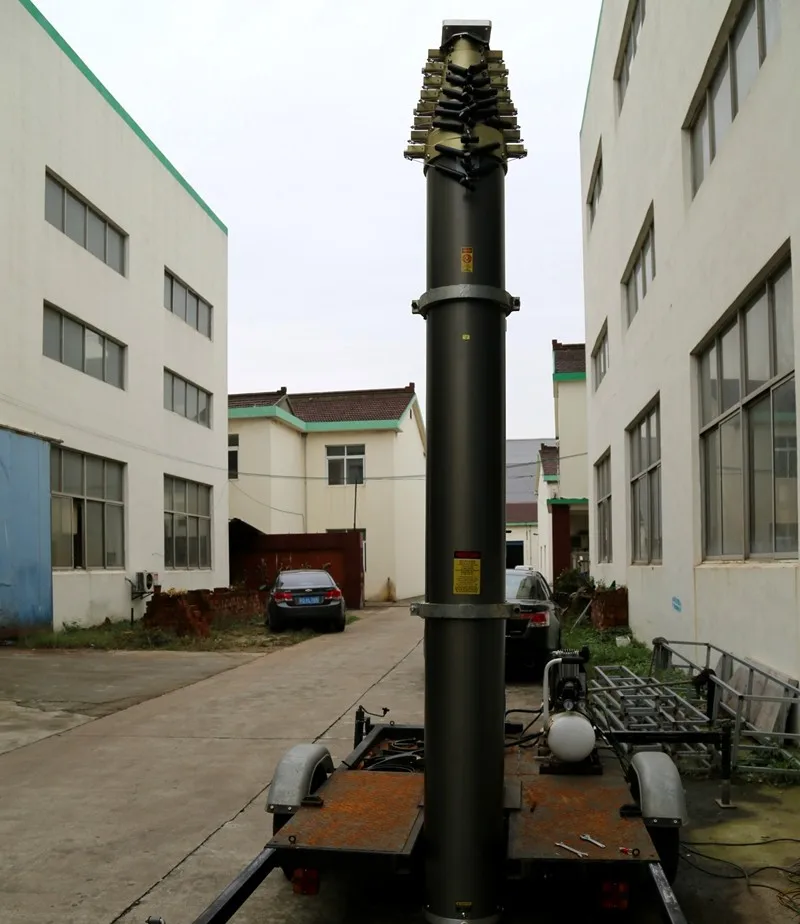

Detailed Images
4m to 2.5m hydraulic telescopic mast for 400kg led screen on trailer
Packing & Delivery
4m to 2.5m hydraulic telescopic mast for 400kg led screen on trailer
Related Products
After-sale service
 Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel    stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
 oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
  it’s better  mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
     using 10 thousand times.

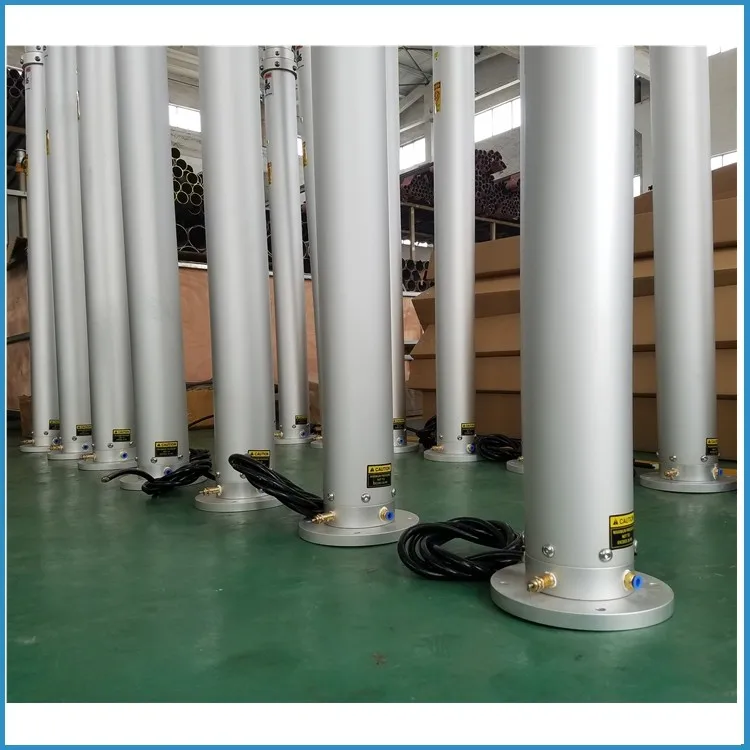

Workshop
