15m 50ft aluminum telecom antenna winch manual telescopic mast

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US $2753.25
  • 5 - 9 Sets
    US $2678.18
  • 10 - 19 Sets
    US $2639.10
  • >=20 Sets
    US $2611.74
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
Talents,15m winch mast
Model Number:
Tal-M15.0-2.7-25-A
Product name:
15m 50ft aluminum telecom antenna winch manual telescopic mast
Material:
Aluminum alloy 6063
Tube treatment:
Anodic oxidation
Surface color:
army green, bronze, or white color
Application:
antenna, telecom equipment
Extended height:
15.0m (50ft)
Retracted height:
2.7m(8.9ft)
Max Head-load:
25kg
Type:
mechanical winch hand crank
Max wind load:
120km/h
Supply Ability
Supply Ability:
2000 Set/Sets per Month 15m 50ft aluminum telecom antenna winch manual telescopic mast
Packaging & Delivery
Packaging Details
plywood case.
inner with EPE indepedent package
Port
Tianjin port,China
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(day) 10 To be negotiated
Video Description
Product Description

Application for all kinds of antenna or telecom equipment

Ground fixed model

With tripod.

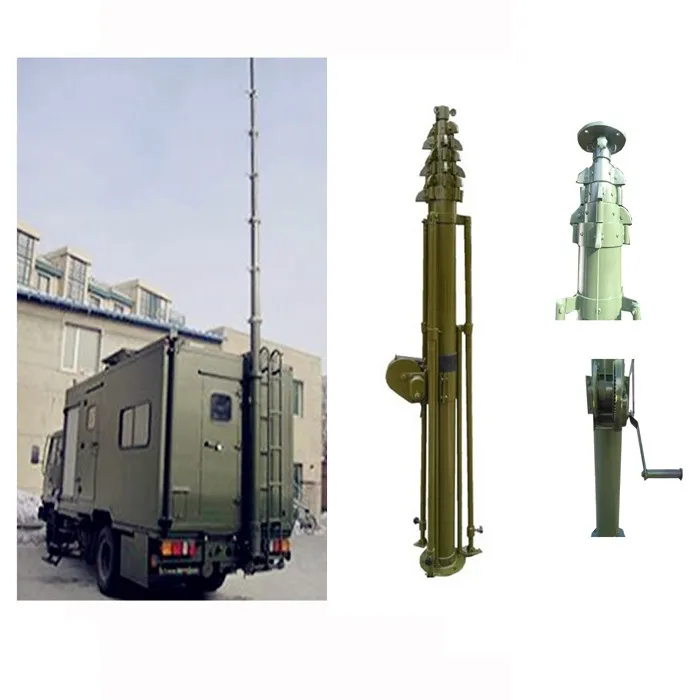

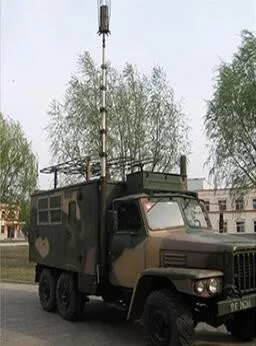

vehicle mounted model

with car clamp and mounted bracket

   Guy wire mounted model

    with tripod and guy wire to fix.

Installation Method:

  1.Select an area free of power lines or other overhead obstructions. Mast location  should be no closer than a horizontal               distance equal to the extended height of the mast away from any overhead power lines. The mast should be located on             level terrain.

2. if mount mast on vehicle, just fix the mast with car clamps, if mount on groud fix the mast base plate and tripod (if needed)      with stainless steel stakes to mak the mast stable.
3. Mount lifting handle bar to raise up manual mast.

4. if have space to fixe guy wire or pulling cord box, use ground anchor to fix them,

      usually height more 15m , 3 layers pulling cord box is better for using

      if less than 15m, 1 to 3 layer nylon guy wire will be suggested based on the height.

How to choose the fittable model and specification?

1.mounted way

   Please confirm the mounted way, ground or vehilcle mounted model.

2.Max extended height

   Confirm the max extended height you need (2m to 35m for your choose)

3.Max head load

    Based on application, confirm the mounted equipment weight and size which will decide the mast tube size.

4. Space for tripod and guy wire

     Confirm if there space to mount the tripod or guy wire.

     the fixed diameter for the tripod is 3m-4m,

     the fixed diameter for the guy wire will be decided by the extended height, usually is 0.56*extended height is ok.

5. Accessories

     special request on the accessories. if yes, let me know.

     if no, we usually provide mast with basic accessories.

Specification
Specification

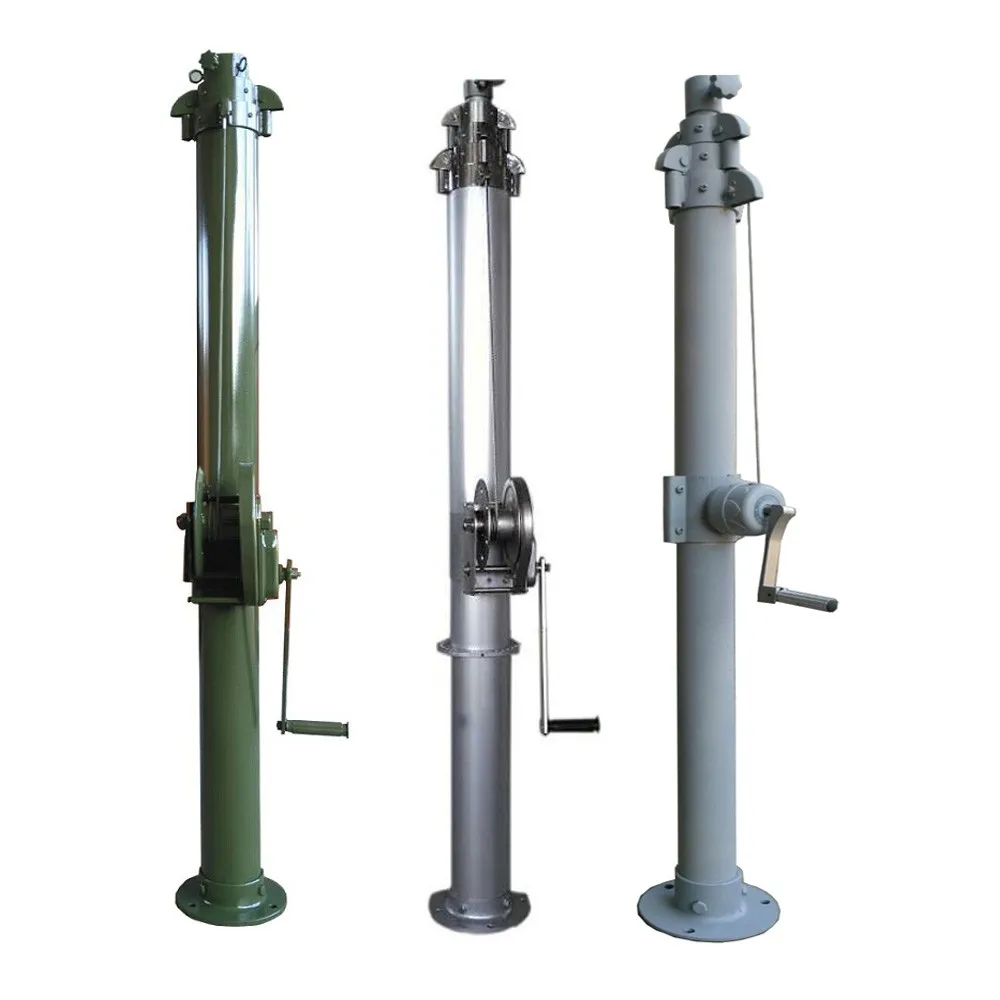

15m 50ft aluminum telecom antenna winch manual telescopic mast
Model No.
TAL-M15-2.7-25-A
Mast material
Aluminum alloy 6063
Mast color
army green,silver,whitel, bronze color for choose
if special request, also acceptable.
Mast fixed way
Ground fixed, with tripod
Extended height
15m
Retracted height
2.7m
Max head-load
25kg
Mast self weight( with tripod)
around 82kg
Max wind load
with guy wire fixed
120km/h
Working temperature
-15℃~55℃
Mast sections No.
7 sections
Section No.& tube OD*Wall thickness
tube OD
     132-114-98-83-69-55-42mm
tube wall thickness
      3.0mm

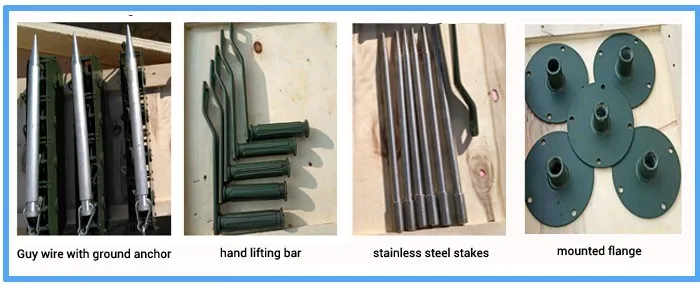

Acessories
Basic Accessories
1. pulling cord box----------------------3pcs
2. Ground anchor-----------------------3pcs
3. stainless steel stake-------------------3pcs
4. Top mounted flange------------------1pc
5. Bottom base---------------------------1pc
4. tripod-----------------------------------1pc
Packing & Delivery
Packaging
Size
285*40*45cm
Weight
120kg



Packaging Details

1.The normal package is plywod case
which is fumigated.
2.all the accessories will be packed with
the EPE in independent package
3.the inner parts of the box will be filled
with some foam to protect the mast
Certifications
Other Specification
Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company


       Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
      Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans
       Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers
an one for one timely information feedback, we have organized an expert team for quality control and inspection system,
we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We
think outside the box and are continually developing new products to meet customer requirements, what you are asking
for is our motive power of task, we wish one of our products will well-meet what you demand.
